Division of multivariate polynomials

See also: Ideal generated by polynomials, Monomial orderings

The objective is to perform a sort of multivariate division of polynomials that has the form^[1]

$$f = q_1f_1 + \ldots + q_sf_s + r,$$

where we have multiple quotients—$q_1,\ldots,q_s$—and multiple divisors—$f_1,\ldots, f_s$—and a residual, $r$.

Example 1

We start with a benign case. We will divide $f(x, y) = xy^2+1$ by $f_1(x, y) = xy+1$ and $f_2(x, y) = y+1$. The division looks like this:

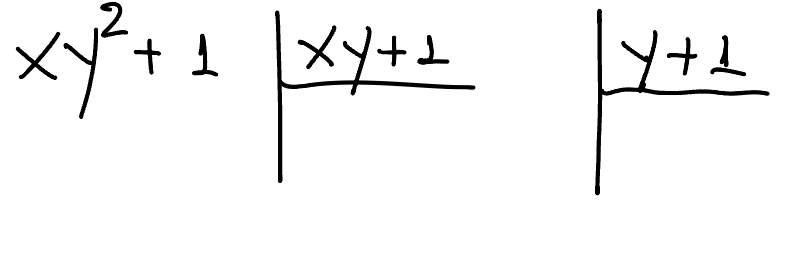

Figure 1. Polynomial to be divided by two other polynomials.

That is, we have two divisors and we'll have two quotients (but one residual).

We use the lex ordering $x > y$. Before we proceed, note

Using the lex ordering we have $xy^2 > xy > y > 1$.

We start the division like we'd do in the univariate case: we identify the leading terms (this is conditioned by the choice of ordering) and divide:

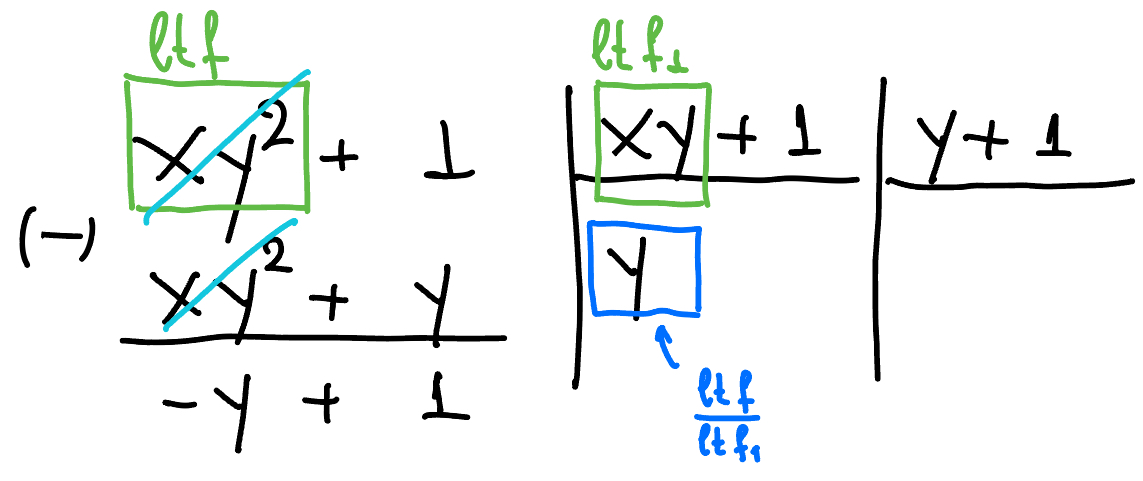

Figure 2. Step 1.

We cannot continue to divide by $xy+1$ because $xy$ does not divide $-y$. We continue with $f_2=y+1$:

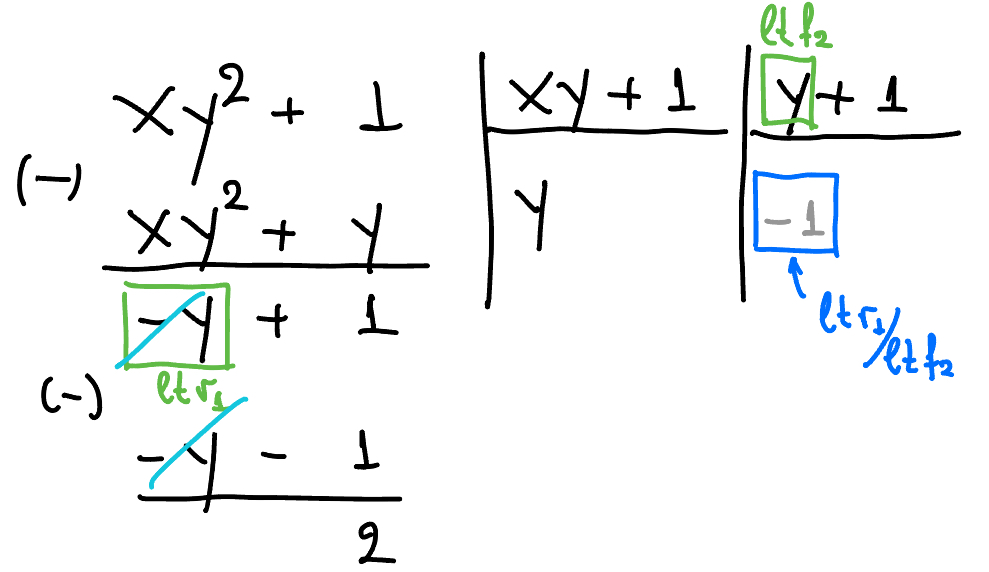

Figure 3. Step 2.

We conclude that

$$xy^2+1 = y(xy+1) + y(y+1) + 2.$$

This was... misleadingly easy!

Example 2

This is a problematic case. We want to divide $f=x^2y+xy^2+y^2$ by $f_1=xy-1$ and $f_2=y^2-1$ in the lexicographic order. We proceed as above, but at some point we get stuck...

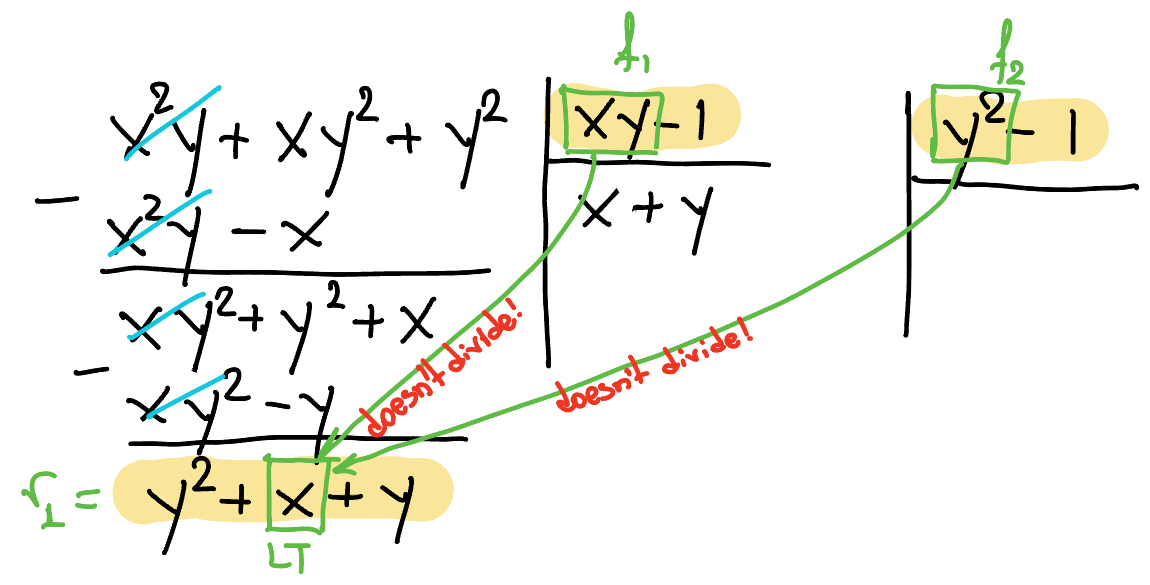

Figure 4. Polynomial division: the issue is that the leading term of $y^2-1$ does not divide the leading term of the remainder (which is $x$).

The problem is that neither $xy$ nor $y^2$ divides the leading term of the current residual, $y^2+x+y$. However, $y^2$ divides a non-leading term: $y^2$. This is unexpected — it would never happen in the univariate case!

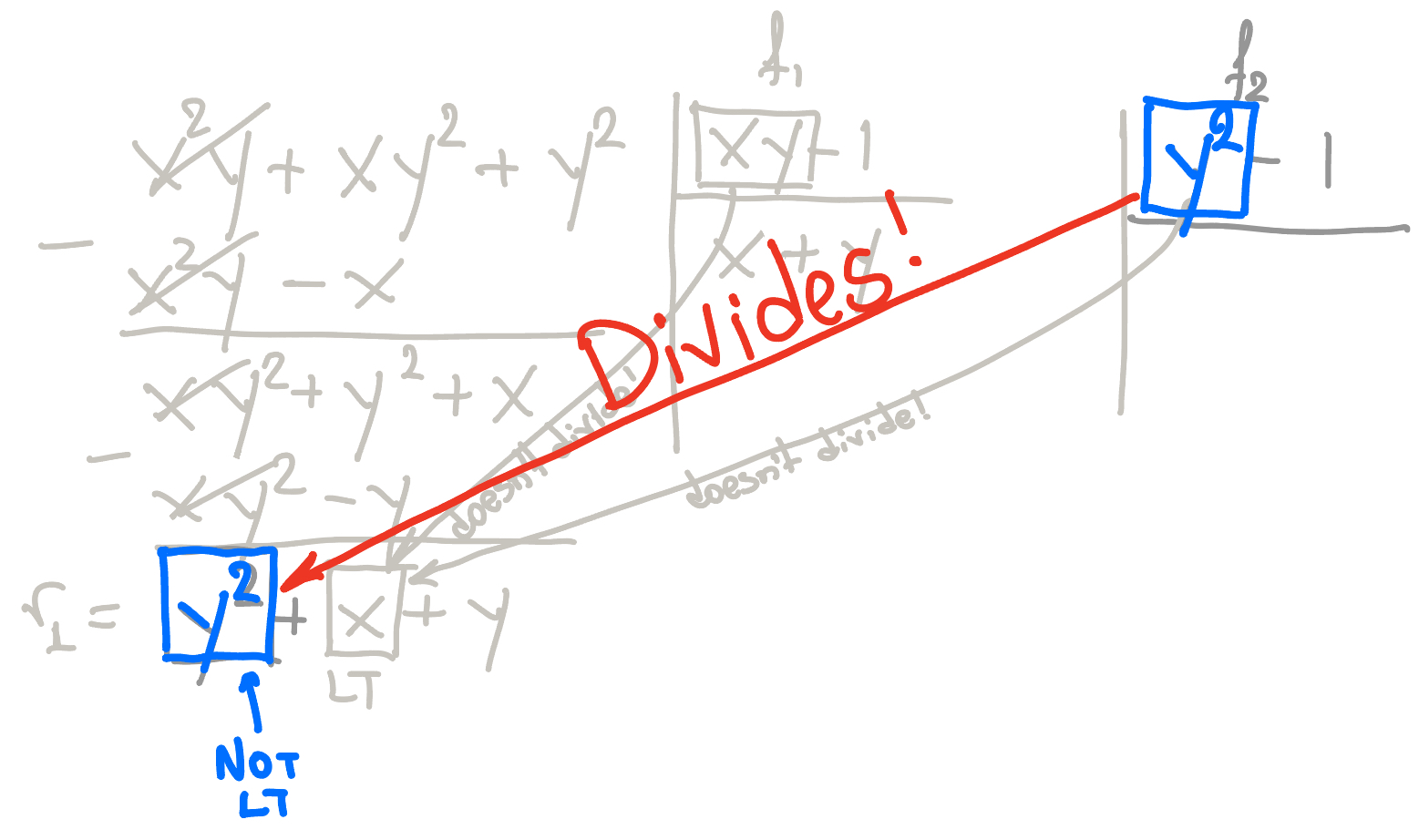

Figure 5. Polynomial division: the divisor divides a non-leading term.

So the "workaround" is to move the leading term ($x$) of $r_1$ to the side and check whether $y^2$ (of $f_2$) divides the residual (having removed the leading term, $x$):

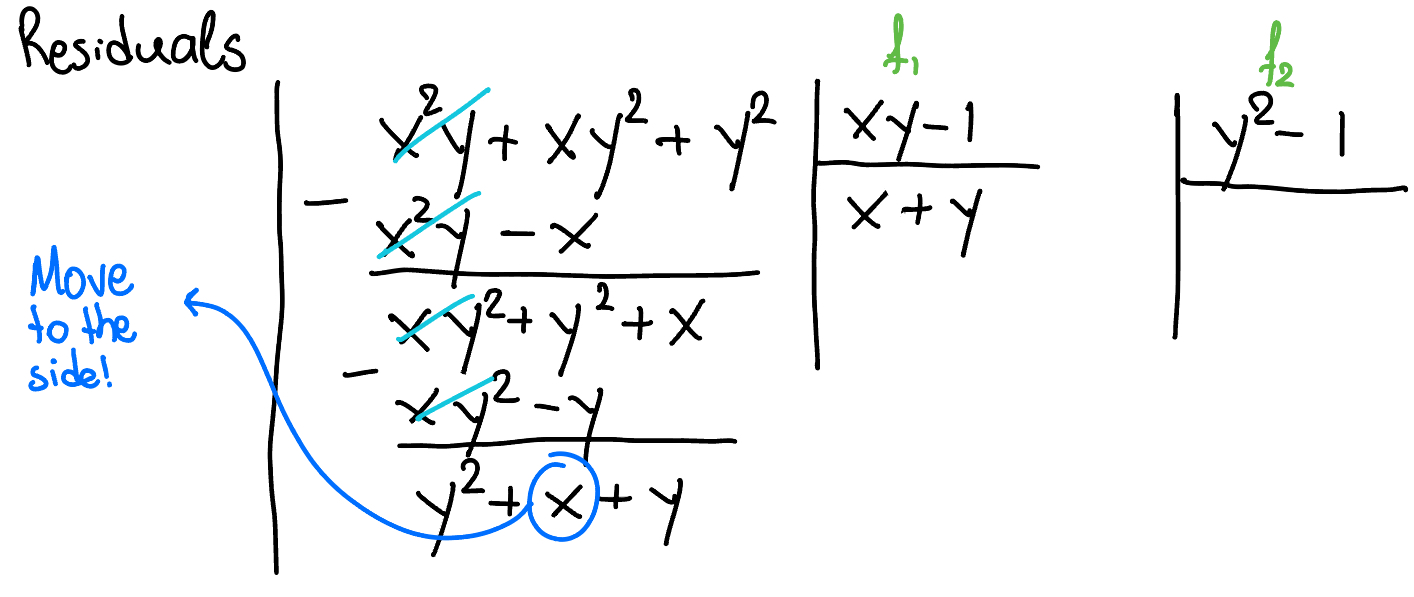

Figure 6. Polynomial division - workaround: setting aside the term of the residual that cannot be divided.

Once we move $x$ to the side we can divide by $y^2-1$:

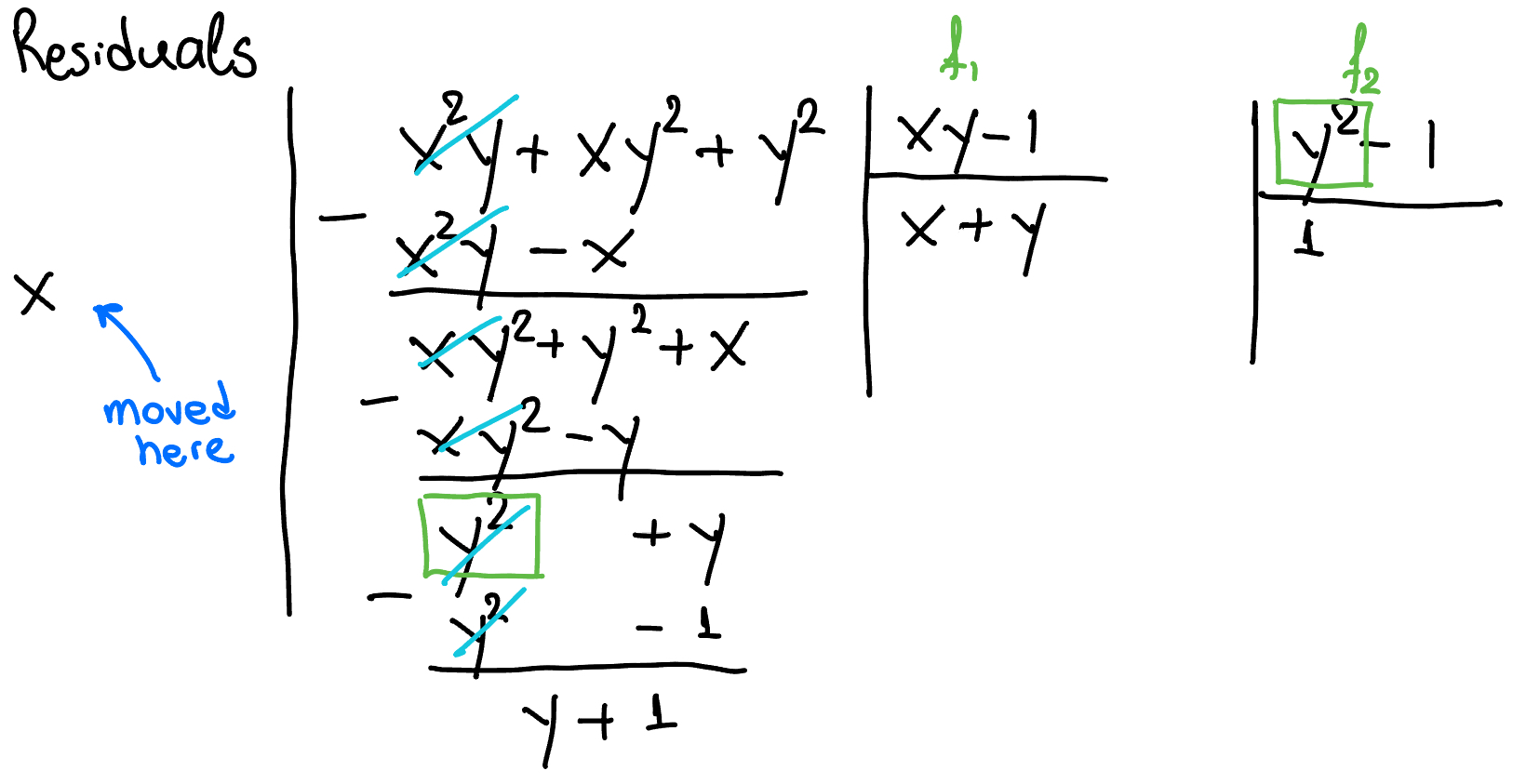

Figure 7. Polynomial division: we can now divide.

Now we should really stop. We have

$$x^2y+xy^2+y^2 = (xy-1)\cdot (x+y) + (y^2-1)\cdot 1 + (x+y+1).$$

A multivariate division algorithm

Cox et al.^[1] give this division algorithm:

% Input: f1, ..., fs, f
% Output: q1, .., qs, r

q1 = 0; ...; qs = 0; r = 0
while p ≠ 0 do
    i = 1
    division_occurred = false
    while i ≤ s and division_occurred == false do
        if lt(fi) divides lt(p)
            qi = qi + lt(p) / lt(fi)
            p = p - ( lt(p) / lt(fi) ) * fi
            division_occurred = true
        else
            i = i + 1
    if division_occurred == false
        r = r + lt(p)
        p = p - lt(p)

    return q1, ..., qs, r

Conclusion

Let ${}>{}$ be a monomial ordering on $\N^n$ (i.e., on $k[x_1,\ldots, x_n]$), let $f\in k[x_1,\ldots, x_n]$, which we want to divide by $f_1, \ldots, f_s$. The order of $f_1, \ldots, f_s$ is important. Then,

$$f = a_1f_1 + \ldots + a_s f_s + r,$$

where $a_i\in k[x_1,\ldots, x_n]$ for $i=1,\ldots, s$, and

• either $r=0$, or
• $r$ is a polynomial whose monomials are not divisible by any of $\operatorname{lt}(f_1), \ldots, \operatorname{lt}(f_s)$

The polynomial $r$ is called the remainder of the division.

Furthermore, for $a_if_i\neq 0$,

$$\operatorname{multideg}f \geq \operatorname{multideg}(a_if_i),$$

and

$$\operatorname{multideg}f \geq \operatorname{multideg}r.$$

Ideal membership?

If the remainder of a division is zero, we'll have

$$f=a_1f_1+a_2f_2,$$

i.e., $f\in \langle f_1, f_2\rangle$. The problem is that if $r\neq 0$ this doesn't imply that $f\notin \langle f_1, f_2\rangle$. Here's an example:

Suppose we want to divide $f=xy^2-x$ by $f_1=xy+1$ and $f_2=y^2+1$ (in this order and using the lexicographic order). We have

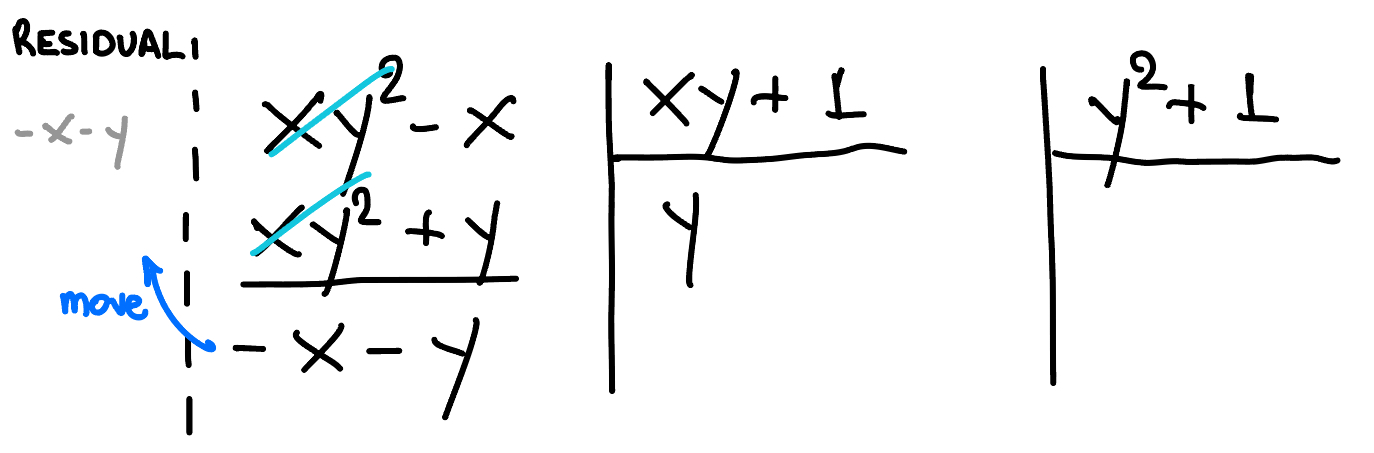

Figure 8. Polynomial division by $f_1$ and $f_2$.

which means that

$$xy^2-x = y(xy+1) + 0(y^2+1) + (-x-y),$$

so we have a nonzero residual. But if we divide by $(f_2, f_1)$ we get a different result.

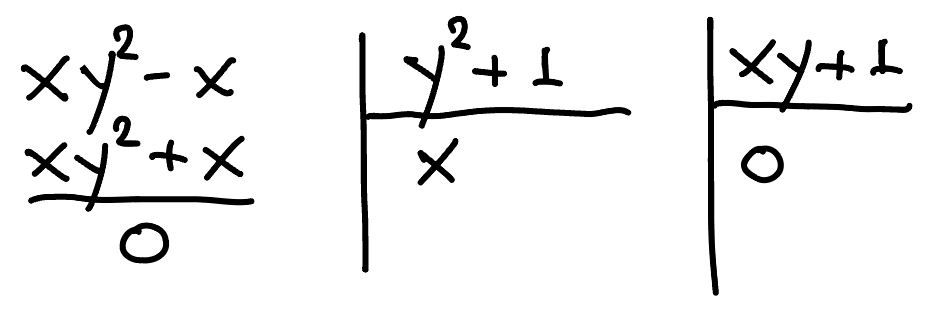

Figure 9. Polynomial division by $f_2$ and $f_1$: different result.

Now the residual is zero. This means that

$$xy^2-x \in \langle y^2+1, xy+1\rangle,$$

but we couldn't have concluded this when we divided by $(f_1, f_2)$.

Exercises

Solution. Firstly, let us use the lexicographic order. We write the above polynomials with their terms in descending order.

$$f = x^7y^2 +x^3y^2 −y+1, f_1 = xy^2 −x, f_2 = x - y^3.$$

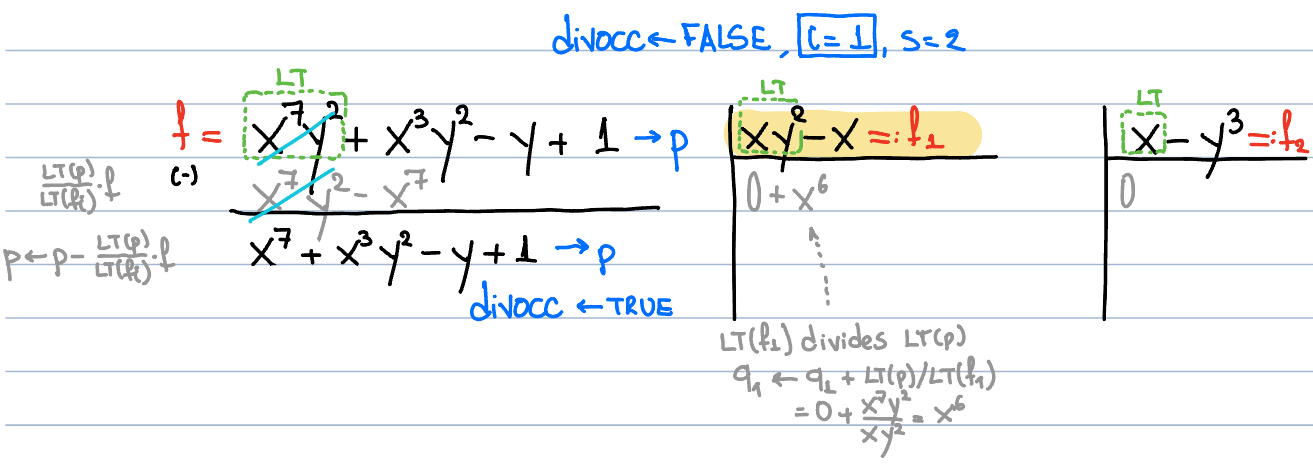

Figure 10. Polynomial division of $f$ by $F$.

Then,

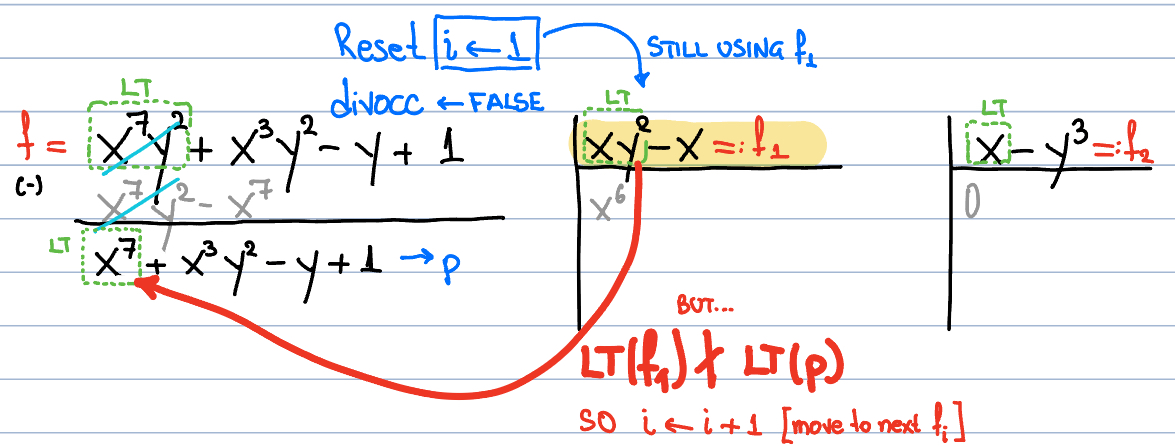

Figure 11. Polynomial division of $f$ by $F$: division is not possible.

since division is not possible we proceed to the the next polynomial, that is, $f_2$,

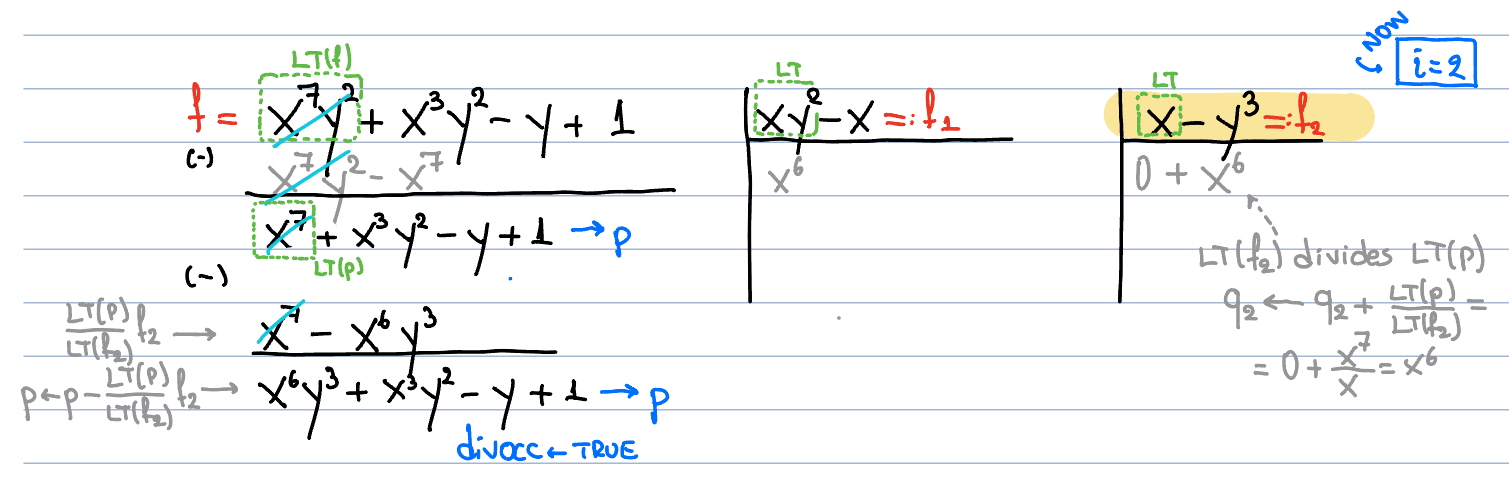

Figure 12. Polynomial division of $f$ by $F$: division is not possible.

The division is successful, so we reset $i$ and we set $i=1$. We don't keep dividing by $f_2$, we continue with the default divisor; here $f_2$ was an alternative divisor (our plan B)...

Figure 13. Polynomial division of $f$ by $F$: division is not possible.

Continuing like this we find that

$$f=q_1f_1 + q_2f_2 + r,$$

where

$$\begin{aligned} q_1 {}={}& x^6 + x^5y + x^4y^2 + x^4 + x^3y + x^2y^2 + 2x^2 + 2xy + 2y^2 + 2, \\ q_2 {}={}& x^6 + x^5y + x^4 + x^3y + 2x^2 + 2xy + 2, \\ r {}={}& 2y^3 -y + 1. \end{aligned}$$

If we perform the division in the order $(f_2, f_1)$ we find

$$f = a_2f_2 + a_1f_1 + \rho,$$

where

$$\begin{aligned} a_2 {}={}& x^6y^2 + x^5y^5 + x^4y^8 + x^3y^{11} + x^2y^{14} + x^2y^2 + xy^{17} + xy^5 + y^{20} + y^8, \\ a_1 {}={}& 0, \\ \rho {}={}& y^{23} + y^{11} -y + 1. \end{aligned}$$

This is a super weird result because both the quotients and the residual seem to be of higher order than $f$, but this is not the case in the lexicographic order. Note that we have large powers of $y$ there—not of $x$. Let's see how the results look like in the graded lexicographic order. If we divide by $(f_1, f_2)$ we get

$$f = b_1f_1 + b_2f_2 + s,$$

where $b_1=x^6+x^2$, $b_2=0$, and $s=x^7 + x^3 -y + 1$.

If we divide by $(f_2, f_1)$ we get the result

$$f=w_2f_2 + w_1f_1 + v,$$

where $w_2=0$, $w_1=x^2+x^2$, and $v=x^7 + x^3 -y + 1$—essentially the same result; there is a symmetry here (not sure whether this holds always for this monomial order, but I doubt it). $\bullet$

In general

$$f=q_1f_1 + q_2f_2 + q_3f_3 + r,$$

Division by $(f_1, f_2, f_3)$ with lex:

$$\begin{aligned} q_1 {}={}& y^2z^2 + y,\\ q_2 {}={}& y^3z^2 + y^2z^5 + y^2 + yz^8 + yz^3 + z^{11} + z^6 - z,\\ q_3 {}={}& z^{12} + z^{10} + z^8 + z^7 + z^6 + z^5 + z^4 + z^3 + z,\\ r {}={}& z. \end{aligned}$$

Again here we see some large powers like 10, 11, and 12.

Division by $(f_3, f_1, f_2)$ with lex:

$$\begin{aligned} q_1 {}={}& y^2 + y,\\ q_2 {}={}& y^3 + y^2z + y^2 + yz + y + 1,\\ q_3 {}={}& xy^2 + y^3z + y^2z^2 + y^2z + y^2 + yz^2 + yz + y + z,\\ r {}={}& z. \end{aligned}$$

Division by $(f_2, f_3, f_1)$ with lex:

$$\begin{aligned} q_1 {}={}& z + 1,\\ q_2 {}={}& xyz^2 + xz^5 + x + yz + y + z^4 + z^3 - z,\\ q_3 {}={}& xz^6 + xz^4 + xz^2 + xz + x + z^5 + z^4 + z^3 + z,\\ r {}={}& z. \end{aligned}$$

Once again, lex gives some large powers.

Division by $(f_1, f_2, f_3)$ with grlex:

$$\begin{aligned} q_1 {}={}& -xz^2,\\ q_2 {}={}& 0,\\ q_3 {}={}& x^2,\\ r {}={}& x^2 + xy - yz. \end{aligned}$$

Division by $(f_3, f_1, f_2)$ with grlex:

$$\begin{aligned} q_1 {}={}& -x,\\ q_2 {}={}& 0,\\ q_3 {}={}& xy^2,\\ r {}={}& x^2 + xy - yz. \end{aligned}$$

Division by $(f_2, f_3, f_1)$ with grlex:

$$\begin{aligned} q_1 {}={}& z + 1,\\ q_2 {}={}& xyz^2 + xz^5 + x + yz + y + z^4 + z^3 - z,\\ q_3 {}={}& xz^6 + xz^4 + xz^2 + xz + x + z^5 + z^4 + z^3 + z ,\\ r {}={}& z. \end{aligned}$$

References

1. David A. Cox, John Little, Donal O’Shea, Ideals, Varieties and Algorithms: An Introduction to Computational Algebraic Geometry and Commutative Algebra, Springer, 2015
2. K. Batselier, P. Dreesen, B. De Moor, The geometry of multivariate polynomial division and elimination, SIAM J. Matrix Anal. Appl. 34(1):102-25, 2013, link
